Direct forming of powder results in scattering and uneven filling density. To prevent this, the material is general granulated before forming.

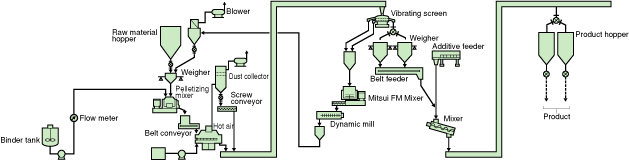

The figure on the right shows the flow of a typical pelletizing/moisture-conditioning/ mixing plant.
We use our own pelletizing mixer (Ryu-O) as the main pelletizer.
The following are examples of equipment:
1.
2.
3. |
For electronic parts: Manufacturing equipment for ferrite, PZT, etc.
For structural parts: Manufacturing equipment for zirconia, alumina, etc.
Others: Manufacturing equipment for pigments, pharmaceuticals, foodstuffs, etc. |
In this system, sharp and fine granules can be obtained with a grain size distribution between a hundred microns and ten millimeters by changing operating conditions such as the peripheral velocity of the pelletzing mixer, the shape of blades and binder. |
 |
|
Installed capacity |
： |
10 - 500 tons/month |
|
