陶瓷造粒调湿设备

Direct forming of powder results in scattering and uneven filling density. To prevent this, the material is general granulated before forming.

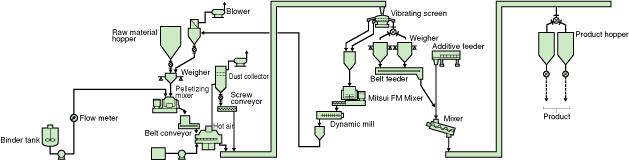

The figure on the right shows the flow of a typical pelletizing/moisture-conditioning/ mixing plant.
We use our own pelletizing mixer (Ryu-O) as the main pelletizer.
The following are examples of equipment:

1.

2.


3.
For electronic parts: Manufacturing equipment for ferrite, PZT, etc.
For structural parts: Manufacturing equipment for zirconia, alumina, etc.
Others: Manufacturing equipment for pigments, pharmaceuticals, foodstuffs, etc.

In this system, sharp and fine granules can be obtained with a grain size distribution between a hundred microns and ten millimeters by changing operating conditions such as the peripheral velocity of the pelletzing mixer, the shape of blades and binder.

Installed capacity

10 - 500 tons/month
